Crash cushion

The QUASH™ is a MASH Compliant, non-redirective crash cushion

Description

The QUASH™ crash cushion distinguishes itself as one of the safest MASH-tested, non-redirective systems on the market. It boasts a user-friendly design and has minimal components to ensure easy handling, installation, and maintenance. Notably, it is the first system designed to safeguard movable barriers as well as portable temporary barriers.

Key features

  • Convenient dual lifting points
  • No internal parts
  • Short system length
  • Empty or full handling

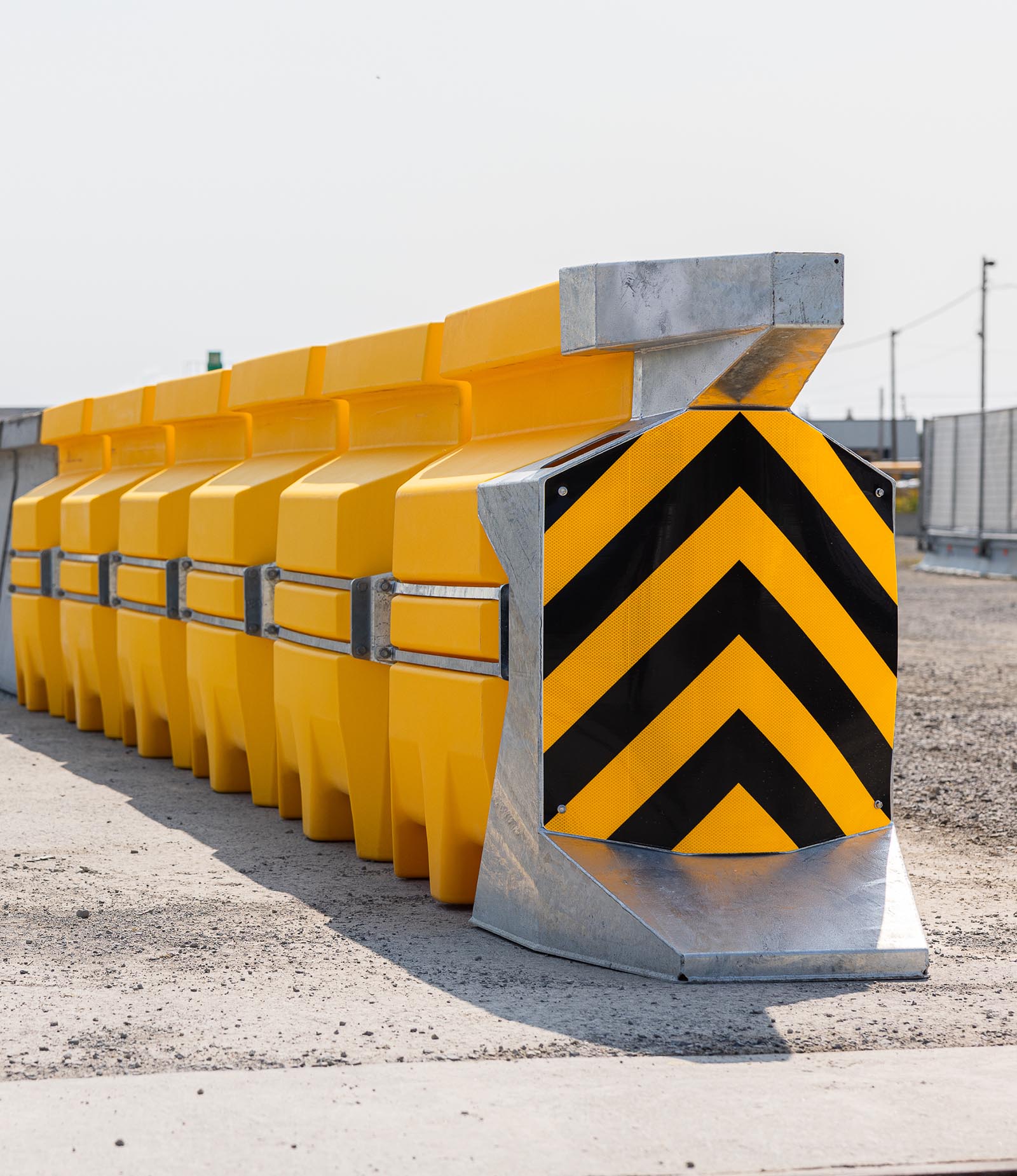

Quash-Single

Specifications

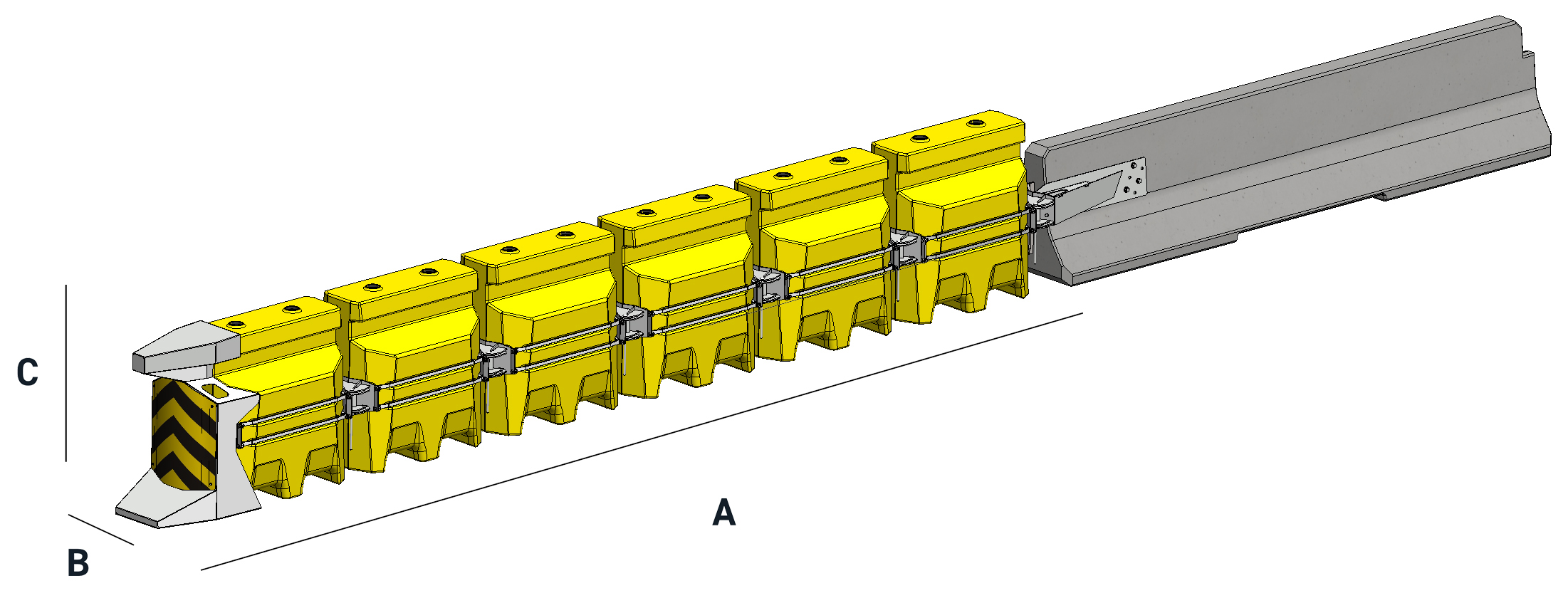

MASH TL-2 MASH TL-3
LENGTH (A) 16.7 ft (5.1 m) 24 ft (7.3 m)
WIDTH (B) 24 in (610 mm) 24 in (610 mm)
HEIGHT (C) 42 in (1.07 m) 42 in (1.07 m)
VOLUME PER FULL ELEMENT 450 L (119 gal) 450 L (119 gal)
WEIGHT EMPTY ELEMENT 140 lbs (63.5 kg) 140 lbs (63.5 kg)
WEIGHT WATER FILLED ELEMENT 1132 lbs (513.5 kg) 1132 lbs (513.5 kg)
COMPATIBLE BARRIER END TREATMENT WIDTH 9.5 in to 13.75 in 9.5 in to 13.75 in
